Kia Forte: Air Cleaner Components - Intake And Exhaust System - Engine Mechanical System - Kia Forte TD 2014-2018 Service ManualKia Forte: Air Cleaner Components

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Engine Mechanical System / Intake And Exhaust System / Air Cleaner Components

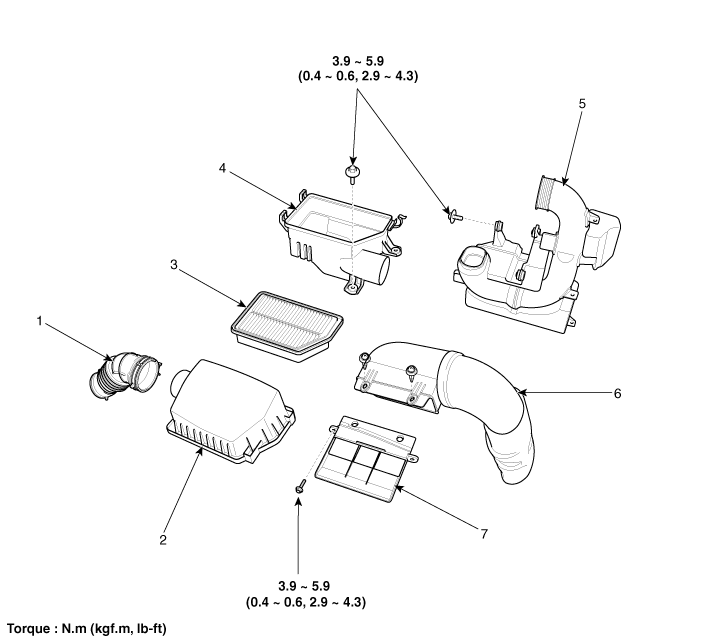

1. Air intake hose
2. Air cleaner cover
3. Air cleaner filter
4. Air cleaner body
5. Resonator
6. Air duct
7. Air intake shield
