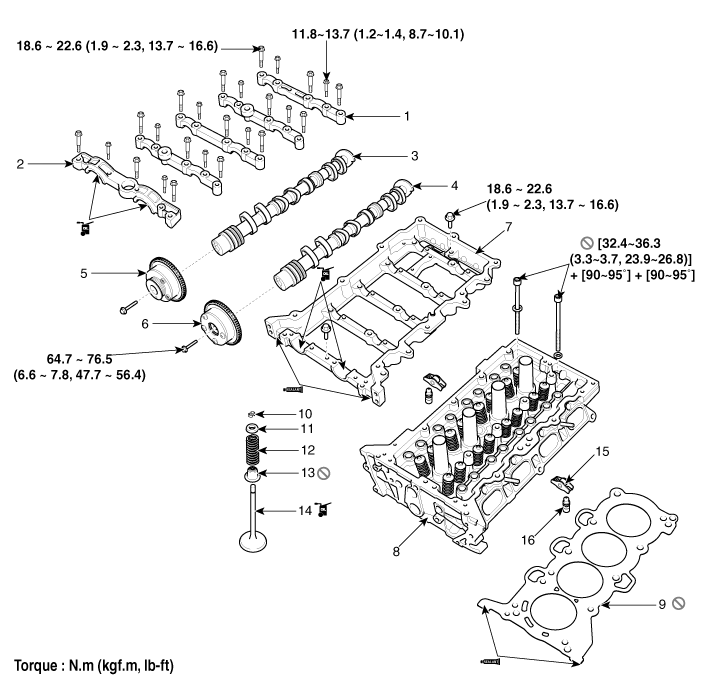

1. Camshaft bearing cap
2. Camshaft front bearing cap
3. Exhaust camshaft
4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly
7. Cam carrier
8. Cylinder head
9. Cylinder head gasket
10. Retainer lock
11. Retainer
12. Valve spring
13. Valve stem seal
14. Valve
15. Swing arm
16. Hydraulic lash adjuster (HLA)

Cylinder Head Assembly
...

Cylinder Head Cover Components
1. Cylinder head cover 2. Cylinder head cover gasket ...
