✽ NOTICE
In cold and wet climates, tailgate lock and tailgate mechanisms may not work properly due to freezing conditions.
WARNING
The tailgate swings upward. Make sure no objects or people are near the rear of the vehicle when opening the tailgate.
CAUTION
Make certain that you close the tailgate before driving your vehicle. Possible damage may occur to the tailgate lift cylinders and attached hardware if the tailgate is not closed prior to driving.
Closing the tailgate
To close the tailgate, lower and push down the tailgate firmly. Make sure that the tailgate is securely latched.
WARNING
Make sure your hands, feet and other parts of your body are safely out of the way before closing the tailgate.
CAUTION
Make sure nothing is near the tailgate latch and striker while closing the tailgate. It may damage the tailgate's latch.
WARNING - Exhaust fumes
If you drive with the tailgate open, you will draw dangerous exhaust fumes into your vehicle which can cause serious injury or death to vehicle occupants. If you must drive with the tailgate open, keep the air vents and all windows open so that additional outside air comes into the vehicle.
WARNING - Rear cargo area
Occupants should never ride in the rear cargo area where no restraints are available. To avoid injury in the event of an accident or sudden stops, occupants should always be properly restrained.

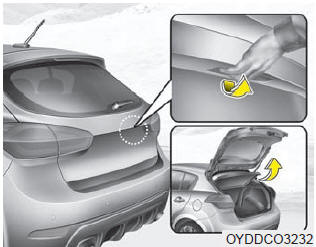

Emergency tailgate safety release
Your vehicle is equipped with the emergency tailgate safety release lever located on the bottom of the tailgate. When someone is inadvertently locked in the luggage compartment.
The tailgate can be opened by doing as follows:
1. Input the machanical key into the hole.
2. Push the machanical key to the right.
3. Push up the tailgate.
WARNING
