Kia Forte: Power Window Relay Inspection
Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Body Electrical System / Power Windows / Power Window Relay Inspection
Diagnosis With GDS
| 1. |
It will be able to diagnose defects of power window with GDS quickly.
GDS can operates actuator forcefully, input/output value monitoring
and self diagnosis.
|
| 2. |
Select model and "BCM".
|
| 3. |
Select the "SJB" to check.
|
| 4. |

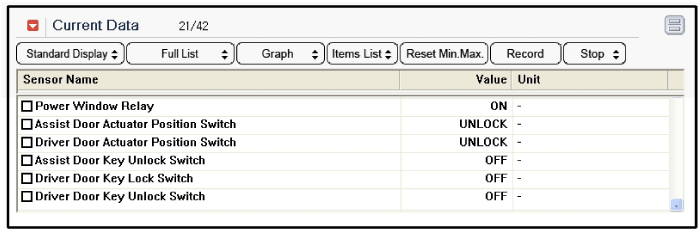

Select "Current data", if you will check current data of power
window system. It provides input/output status of SJB.
|
| 5. |
If you will check the power door lock operation forcefully, select
"Actuation test".
|
Power Window Switch Inspection
Power Window Main Switch Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - ...
