Kia Forte: Components - ESC(Electronic Stability Control) System - Brake System - Kia Forte TD 2014-2018 Service ManualKia Forte: Components

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Brake System / ESC(Electronic Stability Control) System / Components

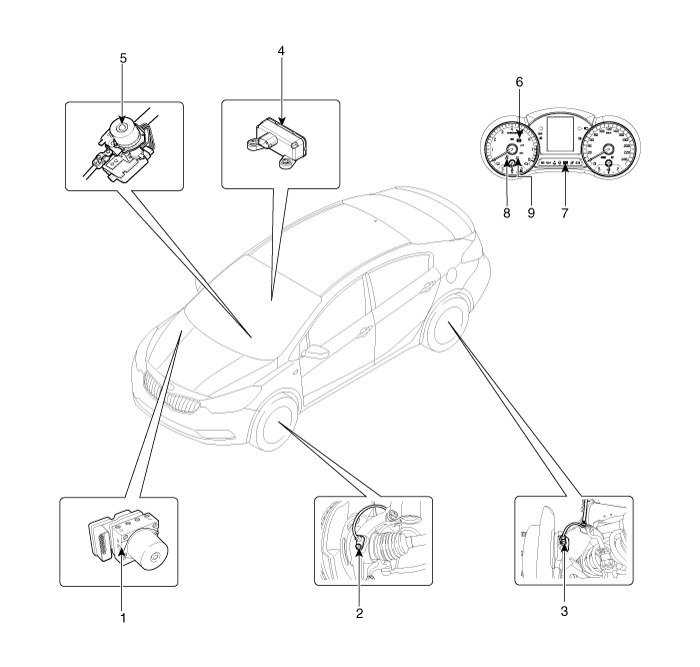

1. ESC Control Module (HECU)
2. Front Wheel Speed Sensor
3. Rear Wheel Speed Sensor
4. Yaw-late & Lateral G Sensor
5. Steering Wheel Angle Sensor
6. ABS Warning Lamp
7. EBD/Parking brake Warning Lamp
8. ESC OFF Lamp
9. ESC Function/Warning Lamp
