Kia Forte: Components - Rear Seat - Body (Interior and Exterior) - Kia Forte TD 2014-2018 Service ManualKia Forte: Components

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Body (Interior and Exterior) / Rear Seat / Components

Components (1)

(Rear Seat 5:5 Type)
[Rear Seat Back]

1. Rear seat headrest
2. Rear seat back webbing guide
3. Rear seat headrest guide
4. Rear seat back assembly
5. Rear seat back heater
6. Rear seat back cover
7. Rear seat back pad
8. Rear back armrest
9. Rear back armrest panel
10. Rear seat back frame assembly

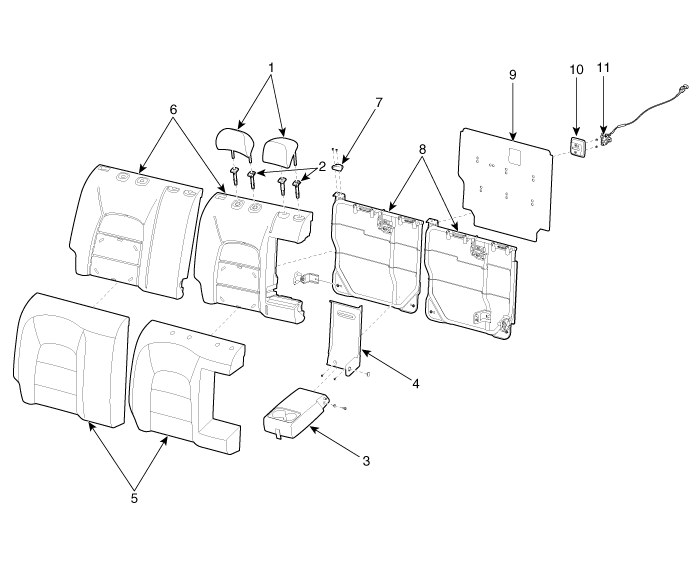

Components (2)

(Rear Seat 6:4 Type)
[Rear Seat Back]
(LH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back cover
4. Rear seat back pad
5. Rear seat back frame assembly
6. Rear seat back webbing guide
7. Rear seat back board
8. Rear seat back latch cover
9. Rear seat latch assembly

(RH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear back armrest
4. Rear back armrest panel
5. Rear seat back cover
6. Rear seat back pad
7. Rear seat back webbing guide
8. Rear seat back frame assembly
9. Rear seat back board
10. Rear seat back latch cover
11. Rear seat latch assembly

Components (3)

[Rear Seat Cushion]

1. Rear seat cushion cover
2. Rear seat cushion pad
3. Rear seat cushion frame assembly

Rear Seat
...

Rear Seat Assembly Component Location
(4Door, 2Door) 1. Rear seat cushion assembly 2. Rear seat back assembly (5Door) 1. Rear seat back assembly [LH] 2. Rear seat back ...
