Kia Forte: Interior

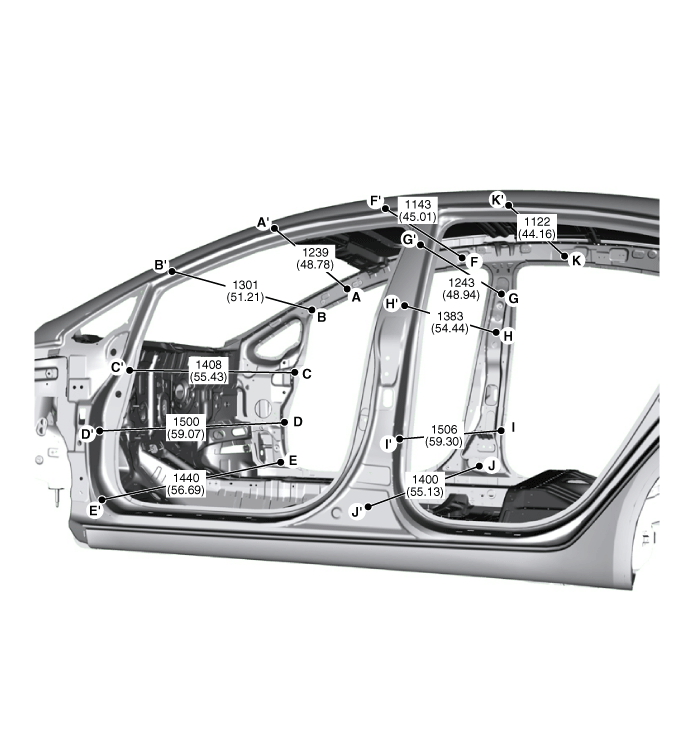

| Interior A |
| * These dimensions indicated in this figure are
actual-measurement dimensions. [ Unit : mm (inch) ] |
| Interior B |
| * These dimensions indicated in this figure are
actual-measurement dimensions. [ Unit : mm (inch) ] |
| Interior C |
| * These dimensions indicated in this figure are
actual-measurement dimensions. [ Unit : mm (inch) ] |
| Interior D |
| * These dimensions indicated in this figure are
actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
|
| Curtain airbag mounting hole (Ø6.6) |
Curtain airbag mounting hole (Ø6.6) |
Curtain airbag mounting hole (Ø6.6) |
|
|
|
|
| Curtain airbag mounting hole (Ø6.6) |
Cowl crossbar mounting hole (Ø9) |
Front door checker mounting hole (Ø13) |
|
|
|
|
| Cowl side trim mounting hole (Ø8.5) |
Curtain airbag mounting hole (Ø6.6) |
Seat belt height adjuster upper mounting hole (Ø16) |
|
|
|
|
| Seat belt height adjuster lower mounting hole (Ø16) |
Rear door checker mounting hole (Ø13) |
Seat belt pretensioner mounting hole
(Ø12.5) |
|
|
|
|
| Curtain airbag mounting hole (Ø6.6) |
Curtain airbag mounting hole (Ø6.6) |
Quarter inner panel tooling hole (Ø6) |
|
|
|
|
| Quarter inner panel tooling hole (Ø6) |
Rear door striker mounting hole (Ø13) |
Wheel house panel mounting hole (Ø8) |
|
|
|
|
| Quarter inner panel tooling hole (Ø8.5) |
Luggage side trim mounting hole (Ø6)
|
Luggage side trim mounting hole (Ø6) |
|
|
|
|
| Parking brake lever mounting hole (Ø9) |
Floor wiring harness mounting hole (12X7) |
Front seat mounting hole (Ø13) |
|
|
|
|
| Floor wiring harness mounting hole (12X7) |
Floor wiring harness mounting hole (12X7) |
Rear floor panel tooling hole (12X7) |
|
|
|
|
| Rear seat mounting hole (Ø16) |
Rear floor panel tooling hole (Ø10) |
Rear transverse trim mounting hole (Ø8.5) |
Side Body
* These dimensions indicated in this figure are
actual-measurement dimensions. [ Unit : mm (inch) ]
Front side m ...
Rear Body
* These dimensions indicated in this figure are
actual-measurement dimensions. [ Unit : mm (inch) ]
Side outer p ...
