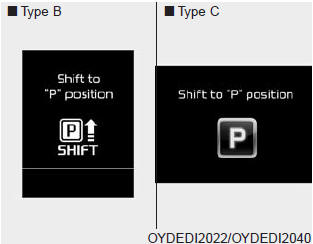

Shift to "P" position (for smart key system and automatic transaxle)
Low Key Battery (for smart key system)
This warning message illuminates if the battery of the smart key is discharged when the Engine Start/Stop Button changes to the OFF position.
Press start button while turn steering (for smart key system)
Steering wheel unlocked (for smart key system)
This warning message illuminates if the steering wheel does not lock when the Engine Start/Stop Button changes to the OFF position.
Check steering wheel lock system (for smart key system)
This warning message illuminates if the steering wheel does not lock normally when the Engine Start/Stop Button changes to the OFF position.
Press brake pedal to start engine (for smart key system and automatic transaxle)
Press clutch pedal to start engine (for smart key system and manual transaxle)
Key not in vehicle (for smart key system)

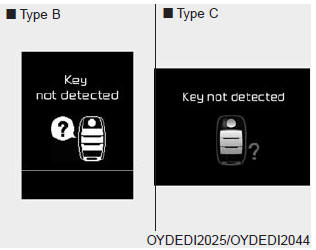

Key not detected (for smart key system)
This warning message illuminates if the smart key is not detected when you press the Engine Start/Stop Button.

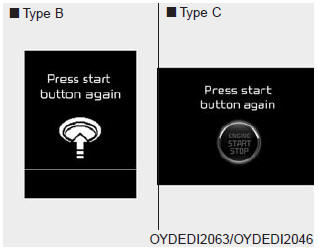

Press start button again (for smart key system)

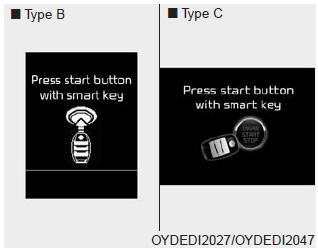

Press start button with smart key (for smart key system)
Check fuse "BRAKE SWITCH" (for smart key system and automatic transaxle)
Shift to "P" or "N" to start engine (for smart key system and automatic transaxle)
This warning message illuminates if you try to start the engine with the shift lever not in the P (Park) or N (Neutral) position.
✽ NOTICE
You can start the engine with the shift lever in the N (Neutral) position. But, for your safety, you should start the engine with the shift lever in the P (Park) position.
Door Open
It means that any door is open.
Trunk (tailgate) Open
It means that the trunk (tailgate) is open.
Sunroof Open (if equipped)
The warning message illuminates if you turn off the engine and then open the driver's door when the sunroof is open.
Low Washer Fluid (if equipped)
Turn on "FUSE SWITCH" (if equipped)
This warning message illuminates if the fuse switch on the fuse box is OFF.
It means that you should turn the fuse switch on.
