✽ NOTICE
Operating door locks from inside the vehicle
With the door lock button
If a power door lock ever fails to function while you are in the vehicle, try one or more of the following techniques to exit:
With central door lock switch (if equipped)
Operate by pressing the central door lock switch.
WARNING - Doors
The doors should always be fully closed and locked while the vehicle is in motion to prevent accidental opening of the door.
WARNING - Unattended children /animals
Never leave children or animals unattended in your vehicle. An enclosed vehicle can become extremely hot, causing death or severe injury to unattended children or animals who cannot escape the vehicle.
Impact sensing door unlock system (if equipped)
All doors will automatically unlock when an impact causes the air bags to deploy.
Auto door lock/unlock feature (if equipped)
Speed sensing door lock system (if equipped)
All doors will be automatically locked after the vehicle speed exceeds 9.3 mph. And all doors will be automatically unlocked when you turn the engine off or when you remove the ignition key. (if equipped)
An authorized Kia dealer can activate or deactivate some auto door lock/ unlock features as follows;
If you want to activate or deactivate some door lock/unlock feature, consult an authorized Kia dealer.

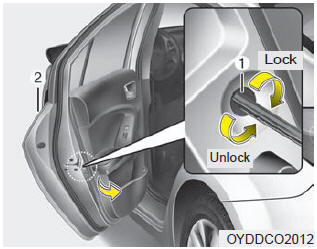

Child-protector rear door lock
The child safety lock is provided to help prevent children from accidentally opening the rear doors from inside the vehicle. The rear door safety locks should be used whenever children are in the vehicle.
1. Open the rear door.
2. Insert a key (or screwdriver) into the hole and turn it to the lock (
)
position.
The child safety lock (1) located on the rear edge of the door to the lock position. When the child safety lock is in the lock position, rear door will not open even when the inner door handle is pulled.
3. Close the rear door.
To open the rear door, pull the outside door handle (2).
Even though the doors may be unlocked, the rear door will not open by pulling the inner door handle until the rear door child safety lock is unlocked.
