Kia Forte: Purge Control Solenoid Valve (PCSV) Circuit Diagram - Engine Control System - Engine Control / Fuel System - Kia Forte TD 2014-2018 Service ManualKia Forte: Purge Control Solenoid Valve (PCSV) Circuit Diagram

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Engine Control / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV) Circuit Diagram

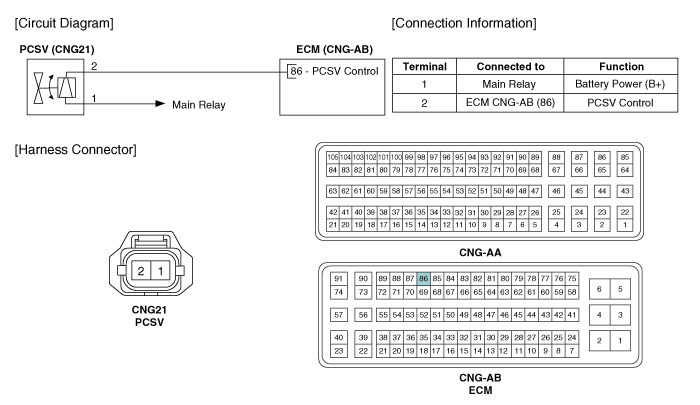

(M/T)

(A/T)

Purge Control Solenoid Valve (PCSV) Specification
Item Specification Coil Resistance (Ω) 22.0 ~ 26.0 [20°C(68°F)] ...

Purge Control Solenoid Valve (PCSV) Inspection
1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between the PCSV termi ...
